Heavy Duty NapaGold Oil Filter vs Heavy Duty Luberfiner XL

Side View - Heavy Duty NapaGold Oil Filter vs Heavy Duty Luberfiner XL
Side View

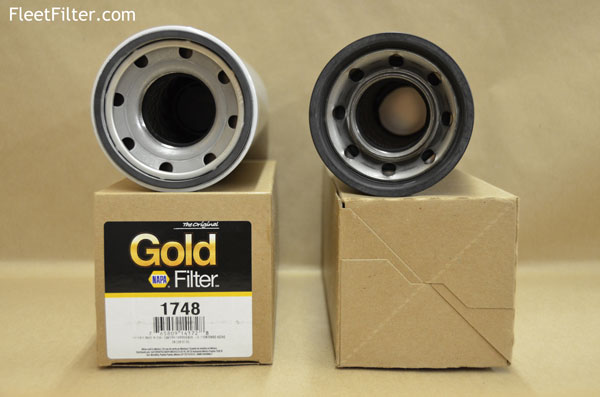

Bottom View - Heavy Duty NapaGold Oil Filter vs Heavy Duty Luberfiner XL
Bottom View

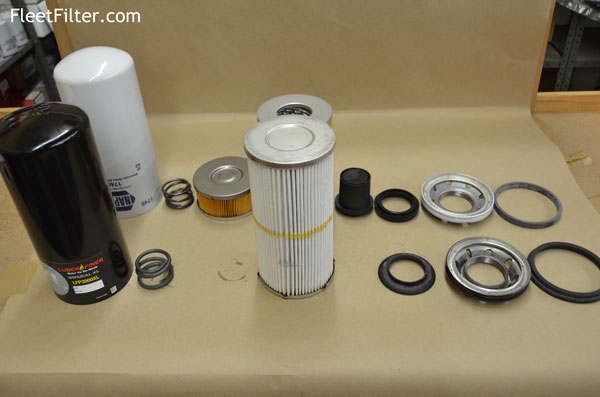

Parts Exploaded - Heavy Duty NapaGold Oil Filter vs Heavy Duty Luberfiner XL
Parts Exploaded
Filter Disassembled - Heavy Duty NapaGold Oil Filter vs Heavy Duty Luberfiner XL
Filter Disassembled
  HD Napa Gold HD Luberfiner XL
Part # 1748 LFP3000XL
Weight (G) 1630.7 1561.5
Height (in) 11 11
OD (in) 4.75 4.75
# of Drain Holes 8 8
Drain Hole ID 0.36 .556x.41
Inside Media Top Paper Synthetic
Inside Media Bottom Paper -
Phenolic Resin Top Yes No
Phenolic Resin Bottom Yes -
Base to Element Gasket Plastic -
Uses a Coil or Leaf Coil Coil
End Caps Top Metal Metal
End Caps Bottom Metal -
# of Pleats Top 104 64
# of Pleats Bottom 107 -
Pleat Connection Top Glued Glued
Pleat Connection Bottom Glued -
Can Thickness 0.03 0.021
Center Tube Style Top Spiral Spiral
Center Tube Style Bottom Spiral Spiral
Media Height Top 6.25 8.25
Media Height Bottom 1.6 -
Media Length Top 148 96.5
Media Length Bottom 189 -
Media Area Top 925 796.125
Media Area Bottom 302.4 -

Notes:

  • Luberfiner XL uses one filter; NapaGold uses two stacked atop each other – the larger media has a high micron rating, the smaller media has a lower micron rating.
  • Luberfiner XL uses a synthetic media with a wire mesh backing for additional strength.
  • Luberfiner XL has more media than the Luberfiner and Fram.
