NapaGold Oil Filter vs K&N

Side View - NapaGold Oil Filter vs K&N
Side View
Bottom View - NapaGold Oil Filter vs K&N
Bottom View

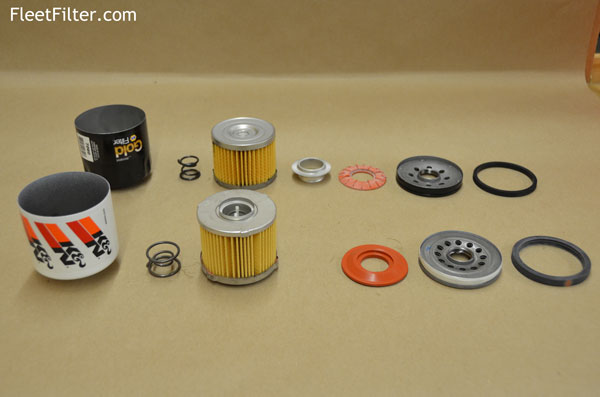

Parts Exploaded - NapaGold Oil Filter vs K&N
Parts Exploaded
Filter Disassembled - NapaGold Oil Filter vs K&N
Filter Disassembled
  Napa Gold K&N
Part # 7060 HP1017
Weight (G) 246.5 332.7
Height (in) 3.36 3.47
OD (in) 2.95 2.995
# of Drain Holes 8 12
Drain Hole ID 0.25 0.199
Inside Media Paper Paper
Phenolic Resin Yes Yes
Anti-Drain Back Valve Yes Yes
Uses a Coil or Leaf Coil Coil
End Caps Metal Metal
# of Pleats 47 54
Pleat Connection Glued Glued
By Pass Yes Yes
Can Thickness 0.015 0.023
Center Tube Style Single Spiral Single Spiral
Media Height 1.817 1.6
Media Length 56.75 55
Media Area 103.11475 88

Notes:

  • K&N had more pleats than NapaGold.
  • K&N had the most drain holes (12) of the seventeen filters.
