Heavy Duty NapaGold Oil Filter vs Heavy Duty NapaGold XD

Side View - Heavy Duty NapaGold Oil Filter vs Heavy Duty NapaGold XD
Side View
Bottom View - Heavy Duty NapaGold Oil Filter vs Heavy Duty NapaGold XD
Bottom View
Parts Exploaded - Heavy Duty NapaGold Oil Filter vs Heavy Duty NapaGold XD
Parts Exploaded

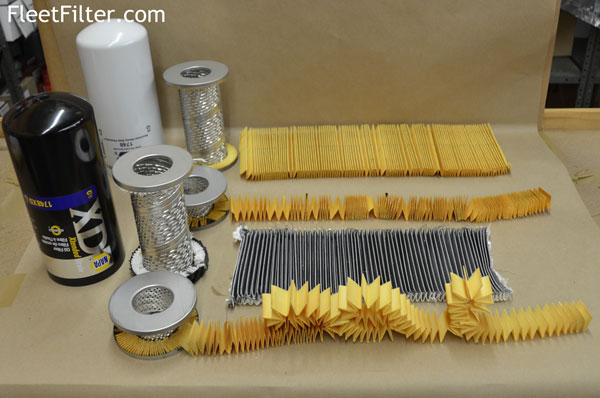

Filter Disassembled - Heavy Duty NapaGold Oil Filter vs Heavy Duty NapaGold XD
Filter Disassembled
  HD Napa HD Napa XD
Part # 1748 1748XD
Weight (G) 1630.7 1735.8
Height (in) 11 11
OD (in) 4.75 4.75
# of Drain Holes 8 8
Drain Hole ID 0.36 0.36
Inside Media Top Paper Synthetic
Inside Media Bottom Paper Paper
Phenolic Resin Top Yes No
Phenolic Resin Bottom Yes Yes
Base to Element Gasket Plastic Plastic
Uses a Coil or Leaf Coil Coil
End Caps Top Metal Metal
End Caps Bottom Metal Metal
# of Pleats Top 104 59
# of Pleats Bottom 107 97
Pleat Connection Top Glued Clamped
Pleat Connection Bottom Glued Glued
Can Thickness 0.03 0.03
Center Tube Style Top Spiral Spiral
Center Tube Style Bottom Spiral Spiral
Media Height Top 6.25 6.25
Media Height Bottom 1.6 1.6
Media Length Top 148 174
Media Length Bottom 189 207
Media Area Top 925 1087.5
Media Area Bottom 302.4 331.2

Notes:

  • Both the NapaGold and the NapaGold XD use stacked filters; however, in the XD version both filters have synthetic media.
  • The NapaGold XD weighed the most of the heavy duty oil filters.
