Product Specifications
| Part Number: | WF10246 |
| UPC Number: | 765809309760 |

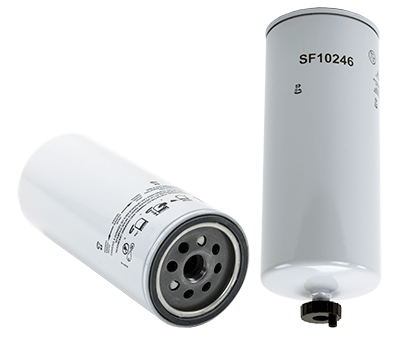

| Style: | Spin On Fuel Water Separator w/ Open End Bottom |
| Service: | Fuel |
| Type: | |
| Media: | Enhanced Cellulose |
| Height: | 11.726 (298)* |
| Outer Diameter Top: | 4.263 (108)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1-14 |
| Nominal Micron Rating: | 16 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Packed | 3.967 (101)* | 3.587 (91)* | 0.240 (6)* |
Principle Application:
| Principle Application: | Case, New Holland, MAN, DAF Engines, Doosan, Terex, Other - WF10246 is a one piece filter w/ drain - if filter w/ a re-usable bowl required - use 33713 |
