Product Specifications
| Wix Number: | 51680 |
| UPC Number: | 765809516809 |

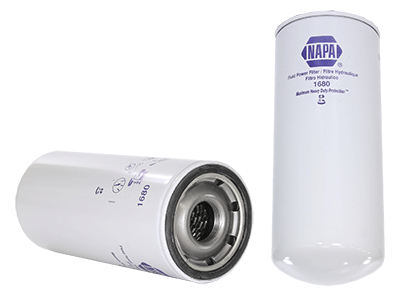

| Style: | Spin-On Hydraulic Filter |
| Service: | Hydraulic |
| Type: | Full Flow |
| Media: | Microglass |
| Height: | 11.345 (288)* |
| Outer Diameter Top: | 4.668 (119)* |
| Outer Diameter Bottom: | Closed: |
| Thread Size: | 1 1/4-11 BSP |
| By-Pass Valve Setting-PSI: | None |
| Beta Ratio: | 2/20=2/15 |
| Burst Pressure-PSI: | 375 |
| Max Flow Rate: | 28-30 GPM |
| Nominal Micron Rating: | 9 |
( )* denotes metric
Gasket Diameters
| Number | O.D. | I.D. | Thk. |
|---|---|---|---|
| Attached | 4.320 (110)* | 3.820 (97)* | 0.365 (9)* |
Principle Application:
| Principle Application: | Sullair Compressors (1 1/4 B.S.P. Thread.) |
